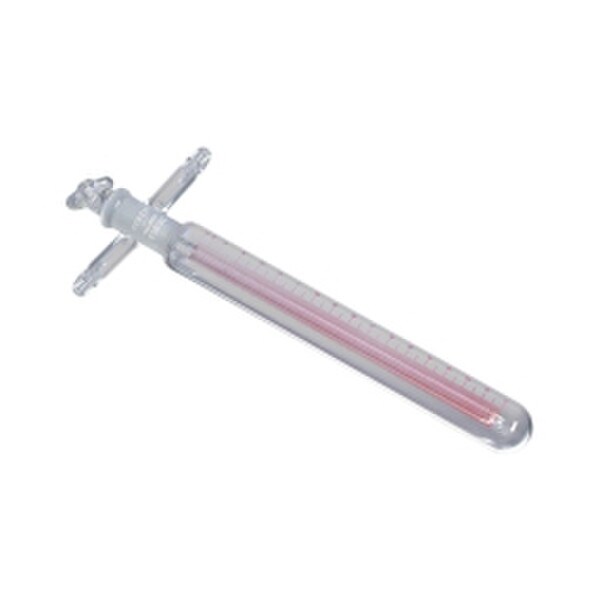

Corning 6952-235 PYREX Mercury Vacuum Tube Manometer with [ST] Stopcock and Side Tubulation, O.D.

This PYREX manometer tube is enclosed in a round bottom, graduated jacket and is sealed to a stopcock plug. T-sidearm permits drawing and venting the vacuum. In use, mercury is placed in the inner tube and in the jacket bottom to measure the pressure differential. Not recommended for positive pressure. The legible, red scale ranges from 0 to 160mm. Mercury filling instructions are supplied with each instrument. Uses 5 to 6 mL mercury which is not supplied. Scale: 0 = 760mm (Full Vac.) 80 = 680mm, 160 = 600mm.
